Semiconductor Showerhead: Core Functions, Technological Evolution, and Market Insights
I. Definition and Core Functions

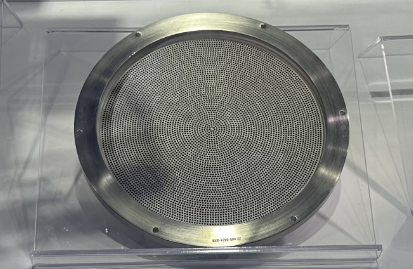

The semiconductor showerhead is a critical component of the gas distribution system in chip manufacturing, functioning similarly to a showerhead—evenly dispersing process gases into the reaction chamber to ensure consistency, precision, and stability in key processes such as etching and deposition.
• Key Performance Metrics:
Gas Uniformity: Directly affects the uniformity of film thickness and etching depth on the wafer surface (error must be controlled within ±1%).
Corrosion Resistance: Must withstand high temperatures, high pressure, and corrosive gases (e.g., CF₄, Cl₂) in plasma environments.
Thermal Stability: Maintains structural integrity under dynamic process temperature variations (200–600°C).
II. Technological Evolution: From Mechanical Design to Intelligent Control
Material Advancements
Silicon-Based Materials: High-purity monocrystalline silicon is used for sub-300mm wafer processes but is prone to plasma etching, resulting in shorter lifespans.
Silicon Carbide (SiC) Coating: Depositing SiC layers on silicon substrates balances purity and corrosion resistance, making it suitable for advanced processes.
Metal-Ceramic Composites: Materials like Al₂O₃-TiC combine ceramic heat resistance with metal thermal conductivity, ideal for high-power plasma processes.
Structural Design Optimization
Perforated Plate Design: Laser-drilled holes achieve nanometer-level precision in aperture and spacing, with porosity reaching 40%–60%.
Zoned Flow Control: Divides the showerhead into independent sections with electromagnetic valves to adjust gas flow, accommodating complex process requirements.
Intelligent Breakthroughs
Adaptive Control Systems: Integrated pressure, temperature, and plasma spectroscopy sensors monitor chamber conditions in real time and dynamically adjust gas distribution parameters.
AI Algorithm Optimization: Machine learning predicts gas diffusion models, reducing process tuning time from weeks to hours.
III. Market Size and Competitive Landscape
Global Market Data
Market Forecast: Expected to reach ¥12.99 billion by 2031, with a CAGR of 7.1% from 2025 to 2031.
Regional Distribution:
Asia-Pacific (60% share): Driven by China, Taiwan, and South Korea, with surging demand for localized supply chains.
North America (32% share): Dominated by local players like Applied Materials and Lam Research in the high-end market.
Oligopoly of Leading Manufacturers
Top 5 manufacturers hold 78% market share:
Lam Research (Silfex): Leads with SiC coating technology, holding 35% market share.
Applied Materials: Integrates showerhead and reaction chamber designs for holistic solutions.
Hana Materials: A Korean manufacturer specializing in memory chip process optimization.
IV. Downstream Applications and Industry Chain Synergy
Demand from Wafer Fabs
Foundries (e.g., TSMC, SMIC): Large-scale expansions demand showerheads with long lifespans (>5,000 hours) and high process compatibility.
IDM Players (e.g., Intel, Samsung): Customized showerheads are increasingly needed for proprietary processes.
Collaborative Innovation with Equipment Manufacturers
AMAT, TEL: Deep integration of showerheads with etching/CVD equipment enhances process efficiency (e.g., Lam’s Kiyo etcher).
Chinese Equipment Makers (e.g., Naura, AMEC): Accelerating domestic showerhead production, achieving substitution in 28nm and above nodes.
V. Future Trends and Challenges
Technological Trends
ALD-Specific Showerheads: Require ultra-low gas flow control (sccm-level) and sub-50μm apertures.
3D Packaging Integration: Adapting to TSV and hybrid bonding processes with multi-layer composite showerheads.
Market Challenges
Technical Barriers: Material formulations and precision machining require long-term R&D, with domestic players still lagging behind global leaders.
Supply Chain Risks: High-end SiC coatings rely on imports, and geopolitical factors threaten stability.
VI. Case Study: Lam Research’s Intelligent Showerhead Solution
Product Name: Sense.i™ Series
Key Features:
Embedded with 300+ MEMS sensors for real-time gas distribution monitoring and compensation.
AI models improve etching rate uniformity to 99.9%.
Application Results: At TSMC’s 3nm node, chip yield increased by 2.3%, and equipment downtime decreased by 40%.
Conclusion
As the "vascular system" of chip manufacturing, semiconductor showerheads play a pivotal role in sustaining Moore’s Law. With the rise of China’s semiconductor industry, domestic manufacturers must advance in materials, processes, and intelligence to break foreign monopolies and support global supply chain diversification.
AMTD provides high-precision showerhead solutions for core components, including Shower Head, Face Plate, Blocker Plate, Top Plate, Shield, Liner, Pumping Ring, and Edge Ring. These critical semiconductor components are widely used in semiconductor and display panel industries, delivering exceptional performance and high market recognition.
