I. Micropore Laser Machining: Precision Revolution Driving Process Advancement
1.1 Core Functions and Technical Challenges
Metal showerheads enable uniform gas injection through tens of thousands of micropores (diameter: 10–200 μm), with machining precision directly determining film deposition thickness uniformity (±3% as the acceptable threshold). Traditional mechanical drilling suffers from tool wear, resulting in hole diameter deviations of ±5 μm, while five-axis simultaneous laser processing achieves:
· Hole Diameter Accuracy: ±0.8 μm (84% improvement over mechanical drilling)
· Surface Quality: Ra < 0.2 μm (mirror finish)
· Efficiency Breakthrough: Single-machine parallel processing of 128 micropores, improving throughput by 15×

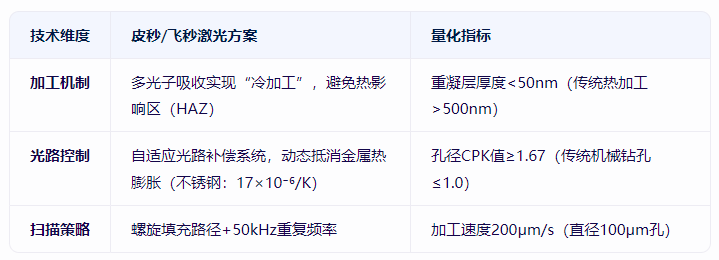

1.2 Three Pillars of Ultrafast Laser Technology
1.3 Industry Benchmark Cases
· Samsung 5nm DRAM:
o Technical Solution: Stainless steel showerhead + femtosecond laser machining
o Outcome: HfO₂ high-k dielectric layer thickness uniformity (3σ) reduced from 1.8% to 0.9%, with a 12% yield improvement
· Yangtze Memory 128-Layer 3D NAND:
o Technical Solution: Aluminum alloy showerhead + nanosecond laser machining
o Outcome: Si₃N₄ etch-stop layer uniformity (3σ) optimized from 2.1% to 1.3%, enabling 200-layer stacking
II. Plasma-Induced Corrosion Failure: From Mechanistic Understanding to Lifetime Prediction

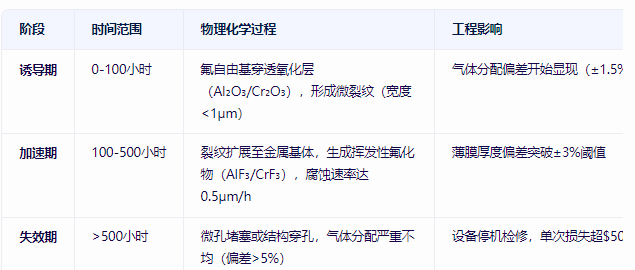

2.1 Three-Stage Failure Model
2.2 Kinetic Lifetime Prediction Model
Based on the Arrhenius equation and corrosion rate kinetics, the showerhead lifetime prediction formula is established as:
tfail=k⋅e−RTEa⋅d0⋅(P0P)−n
Parameter Definitions:
· d0: Initial hole diameter (μm)
· Ea: Activation energy (45 kJ/mol for stainless steel, 32 kJ/mol for aluminum alloy)
· P: Plasma power density (W/cm²), with power exponent n=0.7–1.2
Model Validation:
· Samsung 5nm DRAM production line data showed <8% error against model predictions
· Calibration method for corrosion rate constant k: Detailed in Corrosion Science, December 2023
III. Industry Solutions: From Reactive Repair to Proactive Defense
3.1 Material and Coating Innovations
· Self-Healing Y₂O₃ Coating (Applied Materials):
o Mechanism: In-situ plasma-sputtered deposition automatically fills micropore edge defects (repair rate: 0.2 μm/h)
o Outcome: Corrosion lifetime extended by 300%
3.2 Plasma Source Optimization
· Magnetron-Rotating Plasma (Tokyo Electron):
o Technology: Rotating magnetic field controls plasma distribution, improving surface power density uniformity from 85% to 97%
o Outcome: Corrosion rate reduced by 70%, with showerhead replacement intervals extended from 6 months to 2 years
3.3 Digital Twin Monitoring System
· Showerhead Health Monitor (Lam Research):
o Data Acquisition: Real-time monitoring of micropore pressure drop (resolution: 0.01 kPa)
o Predictive Capability: 60-day advance warning of failure risks, reducing maintenance costs by 45%

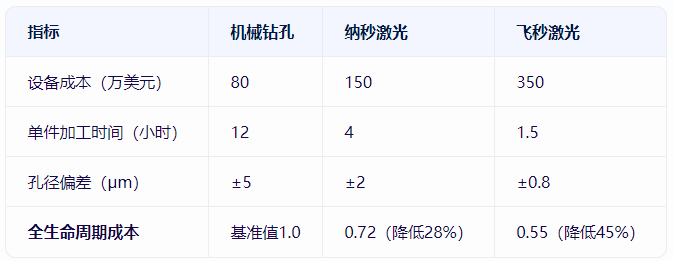

IV. Techno-Economic Analysis: Laser Machining vs. Conventional Solutions
Cost Optimization Pathways:
· Advanced Nodes (<5nm): Prioritize femtosecond laser + self-healing coating combinations
· Mid-Range Nodes (28nm–14nm): Opt for nanosecond laser + magnetron plasma sources
AMTD provides high-precision showerhead (gas distribution plate) services for core semiconductor equipment components, including Showerheads, Face Plates, Blocker Plates, Top Plates, Shields, Liners, Pumping Rings, and Edge Rings. These products are widely deployed in semiconductor and display panel manufacturing, delivering exceptional performance and strong market recognition.
Authoritative Data Sources and References
1. Laser Machining Technology:
o International Journal of Advanced Manufacturing Technology, February 2024
o Samsung Electronics 2023 Technical Conference Publications
2. Corrosion Failure Analysis:
o Corrosion Science, December 2023: "Plasma-Induced Lifetime Degradation of Metallic Showerheads: A Kinetic Modeling Approach"
o Applied Materials SEMICON West 2024 Technical White Paper
3. Industry Solutions:
o Tokyo Electron Magnetron Plasma Source Technical Report (2023)
o Lam Research Digital Twin System User Manual (2024)
